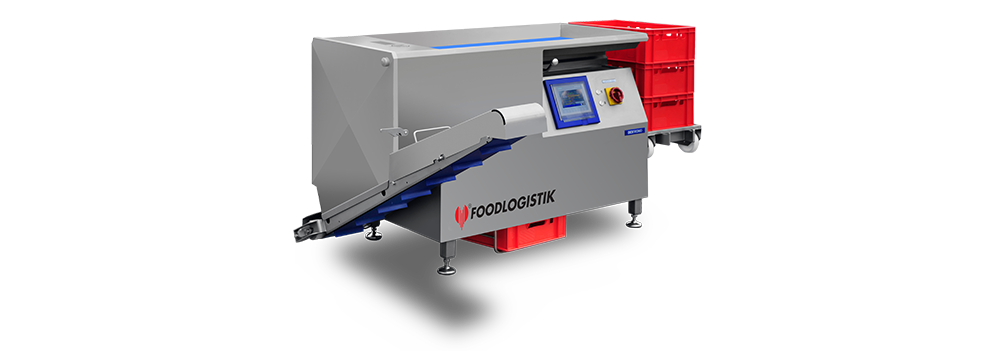

The Expert for meat with big chamber - whether meat or poultry, fresh or frozen, the unique 4-sided pre-compression guarantees high cutting quality. The extra-long working chamber provides high throughput with minimal preparatory work.

Extremely versatile machine equipment:

  • Machine operation via PLC with color touch screen or via mechanical switches
  • Effortless loading by integrated lift for Euro boxes or lift for 200 Liter trolleys optional
  • Continuous product discharge by means of outfeed conveyor or directly into 200 Liter trolleys or into Euro box on roller cart



Minimal space requirement due to modern and compact machine design

Impressive throughput based on fast speeds of up to 300 cuts per minute in stepwise and 400 cuts per minute in continuous single blade operation

Infinitely variable setting of pre-compression and knife speed as well as pressure monitoring optional

Generously dimensioned pre-filling and working chamber

Designed for the toughest workloads and equipped with solid stainless steel grid sets driven by ball-bearing slide elements

Highest standard of hygiene thanks to fully welded machine frame and cutting chamber with drain pipe








technical data
DICR comfort 112

  throughput   kg/h   max. 2100
  4-side pre-compression     equipped as standard
  connected load   kW   5,8 - 12,6
  chamber size   mm   112 x 112 x 530
      inch   413/32 x 413/32 x 207/8
  grid set´s cross section   mm (inch)   105 x 105 (41/8 x 41/8)
  cutting length   mm (inch)   0 - 40 (0 - 19/16)
  length x width x height
  - outfeed into boxes (with lift)   mm   1800 (2251) x 753 (822) x 1066
  - outfeed conveyor (with lift)   mm   1688 (2140) x 686 (779) x 1066
  weight   kg   525 - 590






German by Design
